AFL BS 4449:2005

AFL BS4449:2005 +A3 : 2016 GRADE B500B & BS4449:2005 +A3 : 2016 GRADE B500C

Features

Features of AFL BS4449:2005 +A3 : 2016 GRADE B500B & BS4449:2005 +A3 : 2016 GRADE B500C:

High strength rebars yield strength over 500 MPa
A Substitute to Imported Rebars

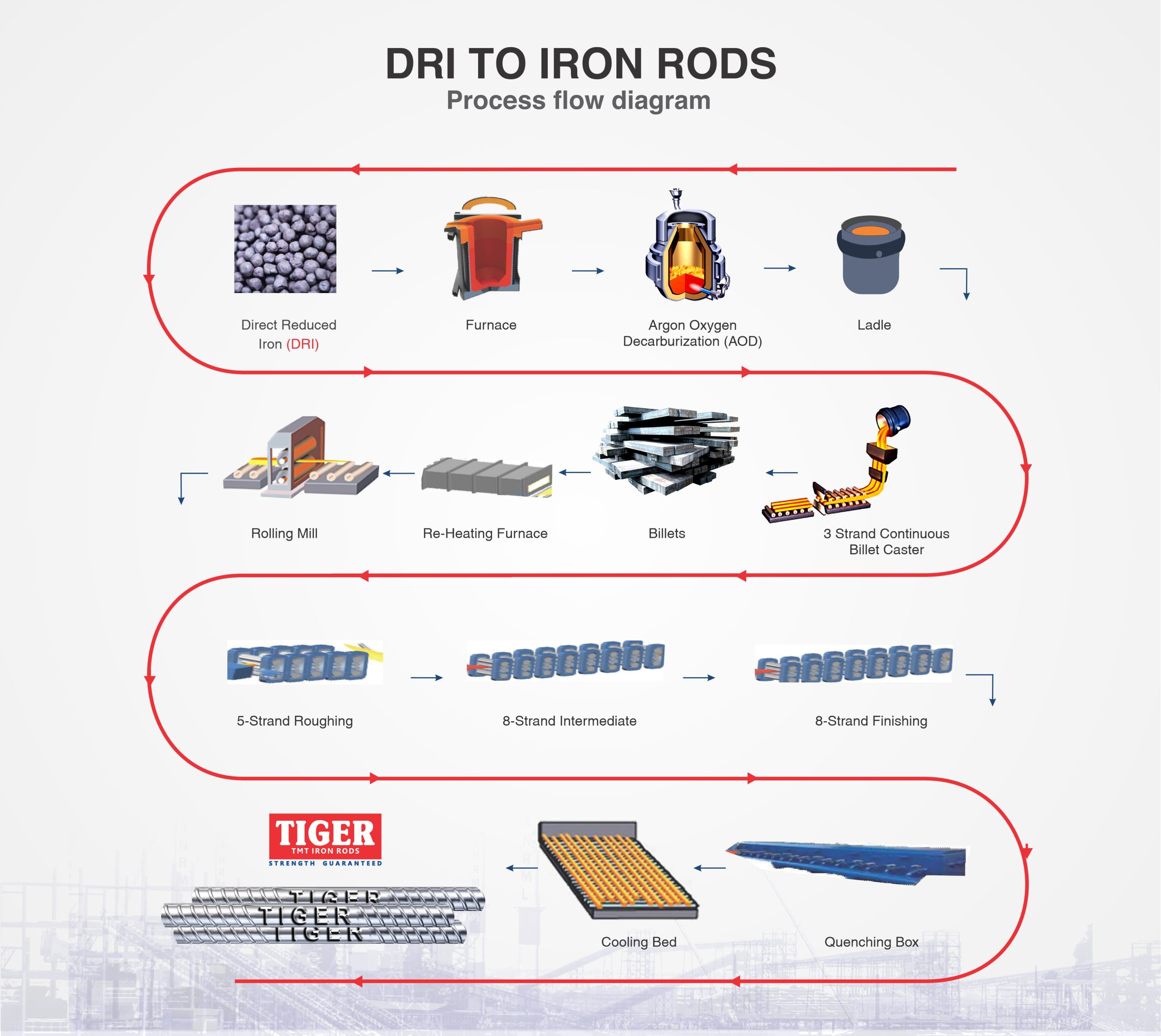

Manufactured in a computerized controlled, highly automated, high speed continuous mill
Adheres to all aspects of British Standards (AFL BS4449:2005 +A3 : 2016 GRADE B500B & BS4449:2005 +A3 : 2016 GRADE B500C):
1. Fatigue resistance
2. RRA (Relative rib area)
3. Rib geometry
4. Mechanical properties
AFL Rebars are supplied with Mill Test Certificates
Delivered in pilfer-proof 2 ton bundles
AFL rebar bundles are supplied with two tags per bundle
Strictly adhering to UK CARES norms on Rebar attributes and manufacturing processes

Quality Assurance

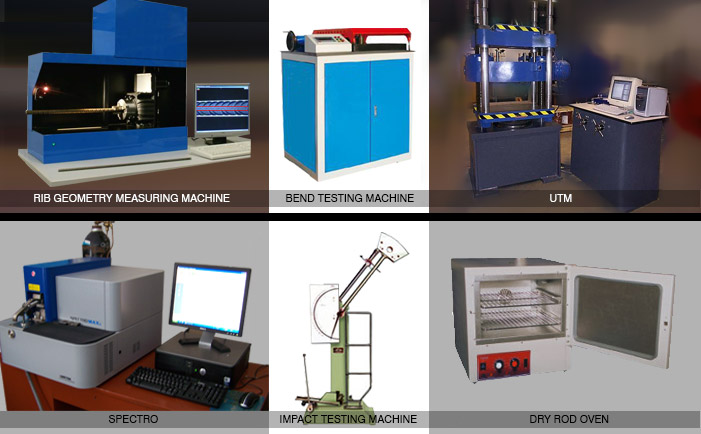

AFL is equipped with a self sufficient lab, equipped with all necessary equipment required for testing rebars. It has the facility to make mechanical property testing in conjunction with the production process and certifies product quality online. All AFL products are accompanied with full test certificates on the mechanical and chemical properties of the rebars.

The lab is manned by qualified and skilled personnel that are constantly being trained on changing requirements of quality testing.

Specification

The Premium Brand in Nigeria. AFL Brand is a symbol of our commitment to international quality standards.

Made from Premium Billets, AFL BS4449:2005 +A3 : 2016 GRADE B500B & BS4449:2005 +A3 : 2016 GRADE B500C Rebar is the most trusted BRAND in Nigeria for its consistency in Quality and Technical conformity.

AFL – CHEMICAL COMPOSITION & MECHANICAL PROPERTIES
Chemical Composition	AFL
% Carbon	0.22 Max
% Silicon	0.30 Max
% Manganese	0.60 Min
% Copper	0.80 Max
% Sulphur	0.050 Max
% Phosphorus	0.050 Max
Sulphur + Phosphorus	0.095 Max
Mechanical Properties
Yield Stress (N/mm²)	525 Min
UTS/YS	1.08 Min
% Elongation (at max load) - Agt	5% Min
Weight Tol %	As per standard
